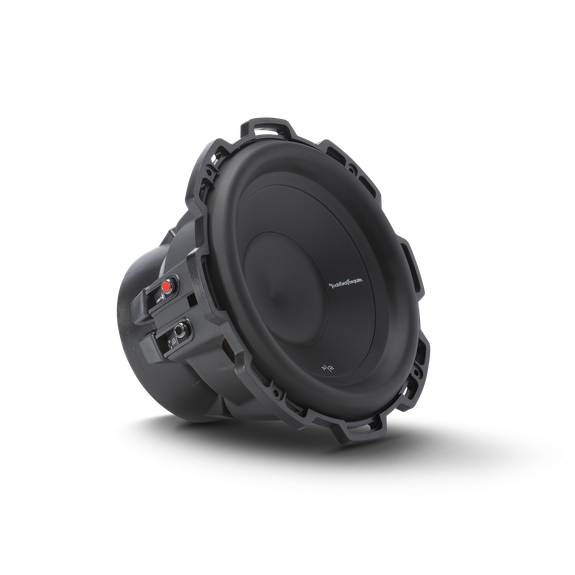

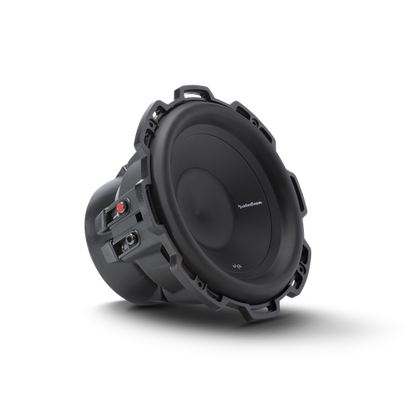

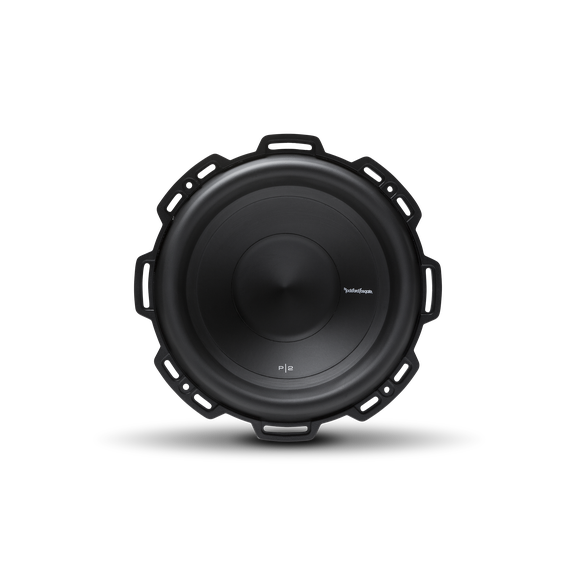

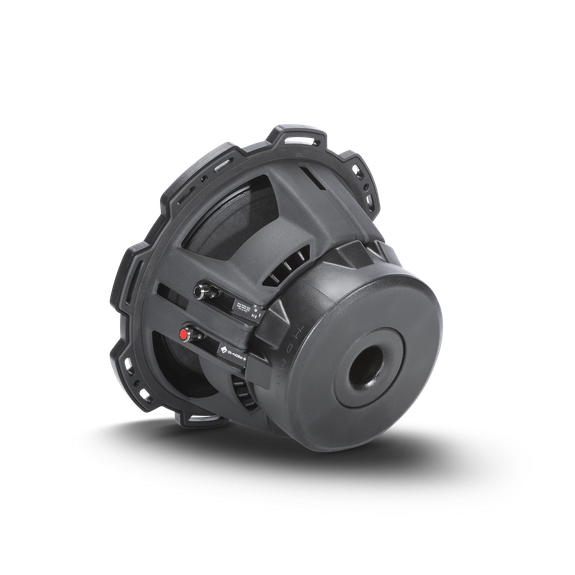

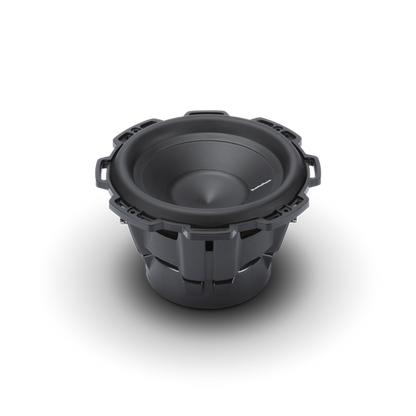

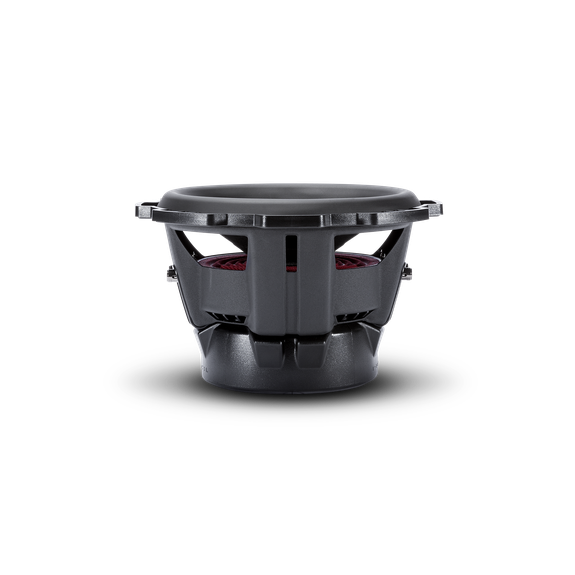

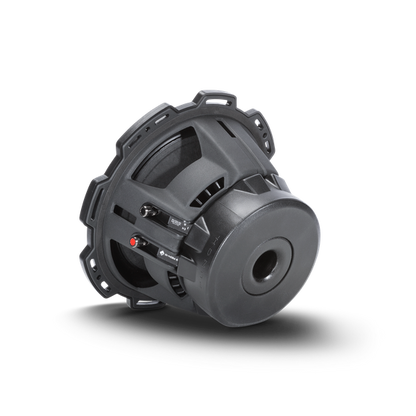

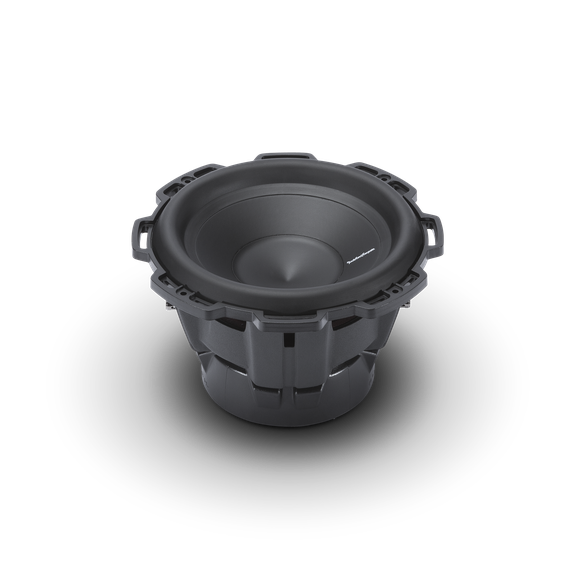

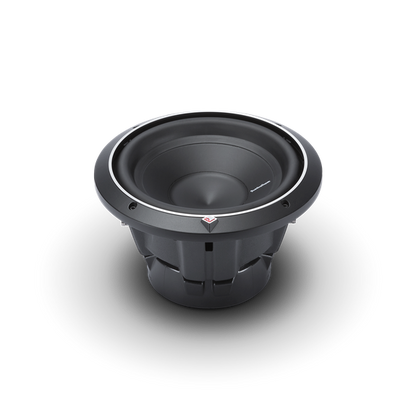

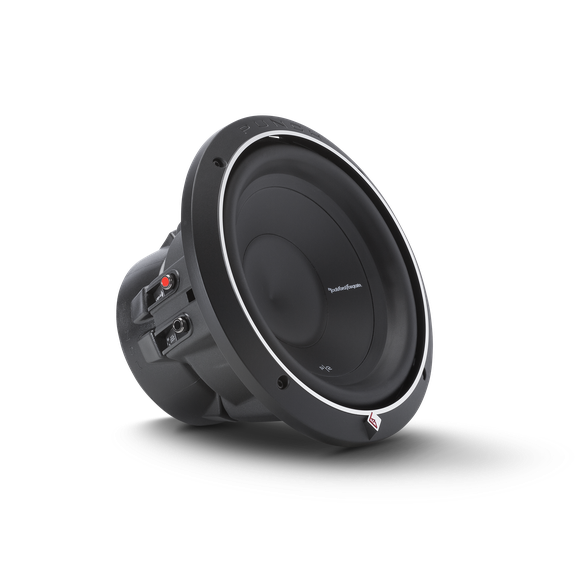

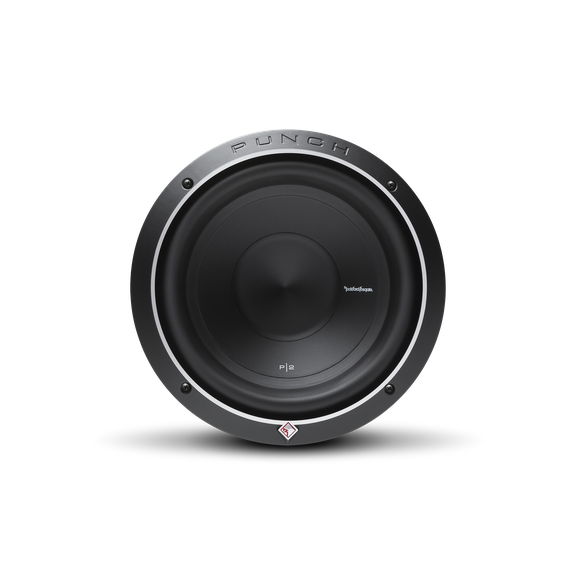

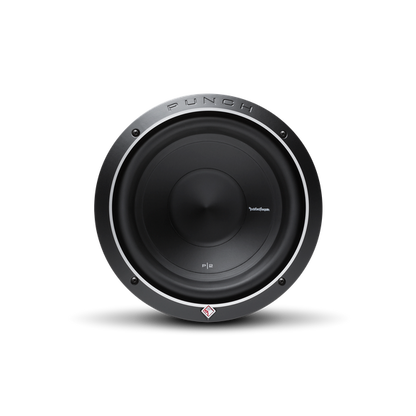

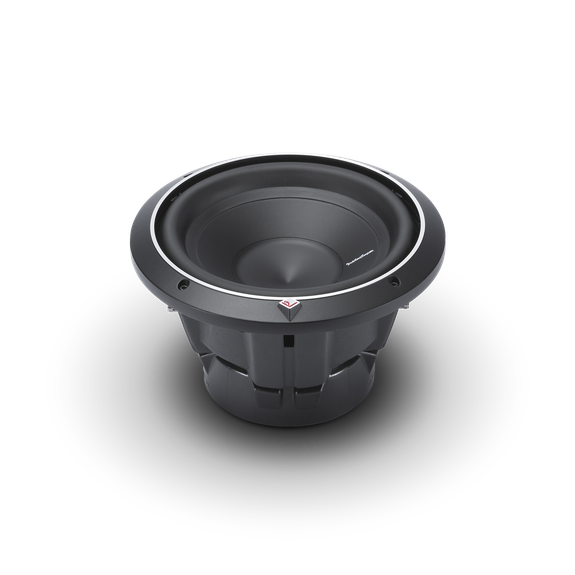

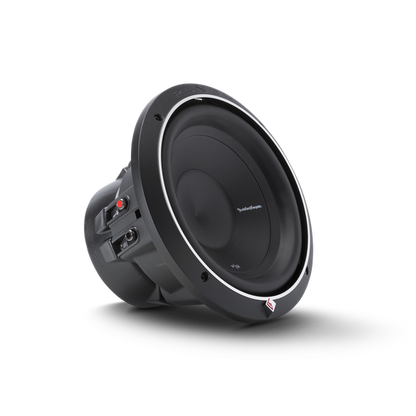

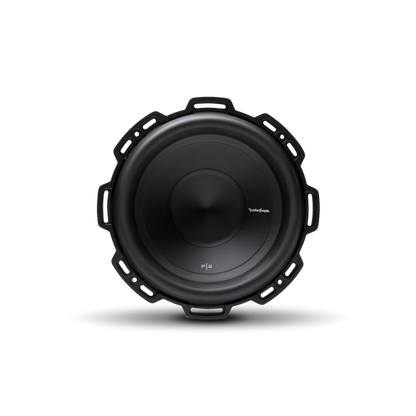

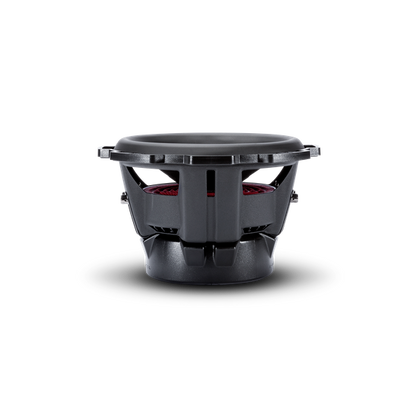

Rockford Fosgate Punch P2D2-10
Rockford Fosgate Punch P2D2-10
SKU:P2D2-10
Regular price
$179.99 USD
Regular price
Sale price
$179.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Punch 10" P2 2-Ohm DVC Subwoofer
The Rockford Fosgate P2 10 inch subwoofer for cars and trucks continues “The PUNCH” tradition. The P2D2-10 sub features a Dual 2-Ohm voice coil (DVC), 300 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring. The P2D2 10 inch subwoofer also includes:
FEATURES AT A GLANCE
- Custom 10-AWG nickel plated push terminals
- Dual linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped vented backplate
- Protective PVC textured magnet cover
- Kevlar fiber reinforced paper cone
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
Specification
| Specification | Details |
|---|---|
| Power Handling (Watts RMS) | 300 Watts RMS / 600 Watts Max |
| Qms | 7.00 |
| Size | 10" |
| Nominal Impedance | Dual 2-Ohm |
| Mounting Depth | 5.92 in. (150.4 mm) |
| Voice Coil Diameter | 2.25" (57.15 mm) |
| SPL (dB @ 1w/1m) | 84 |
| Woofer Displacement | 0.060 cu. ft. (1.7 Liters) |
| Le (mH) | 3.32 |
| Qes | 0.54 |
| Vas (Liters) | 35.4 |
| Xmax (mm) | 11 |
| Fs (Hz) | 29 |
| Shipping Weight | 13.6 Lbs. (6.16 kg) |
| Speaker Connector | Dual 10 AWG compression |
| Magnet Weight (oz) | 66.4 oz. (1.88 kg.) |
| Qts | 0.50 |
| Cutout Diameter | 9.13 in. (232 mm) |
| CEA-2031 Compliant | Yes |
| CEA-2031 Guidelines | CEA-2031 Guidelines |
| Sd (cm²) | 360 |
| Re (Ohms) | 3.20 |
| Subwoofer Type | Standard |
| Voice Coil Type | Dual Voice Coil |
| Sealed Box Volume (Vb) | 0.59 cu. ft. (16.7 Liters) |
| Vented Box Volume (Vb) | 1.4 cu. ft. (39.6 Liters) |
