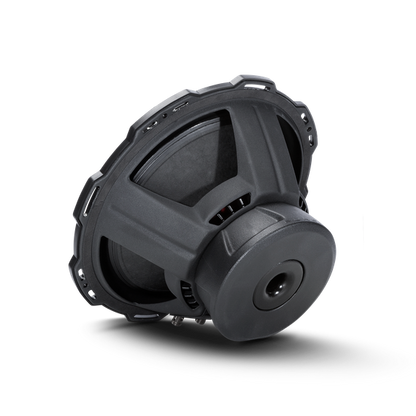

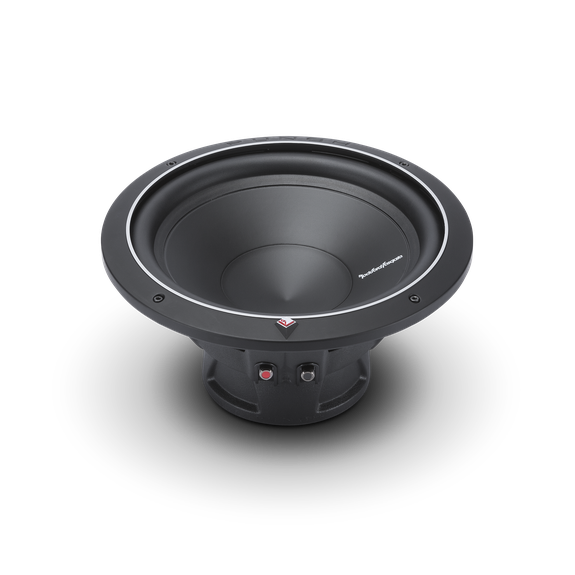

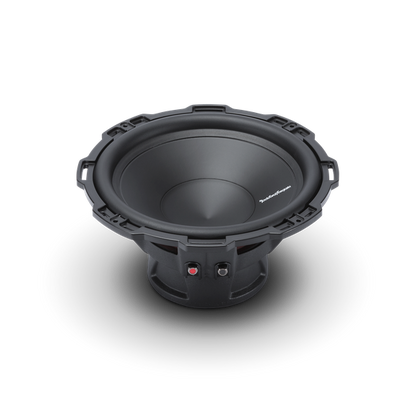

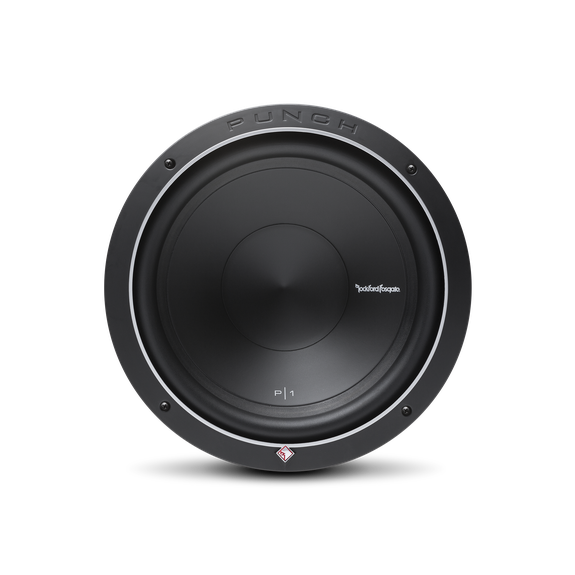

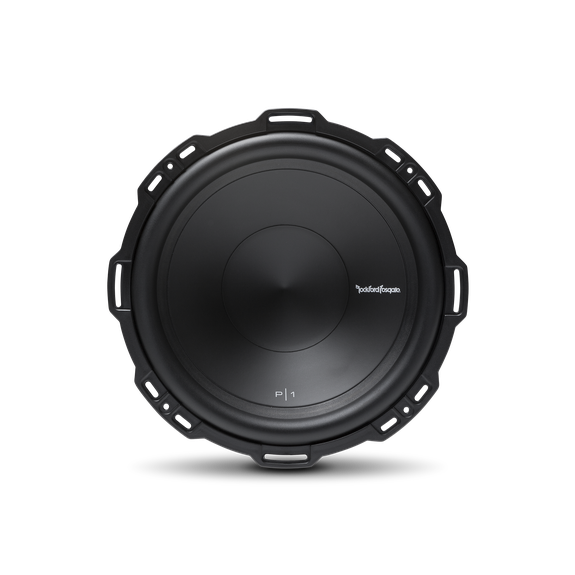

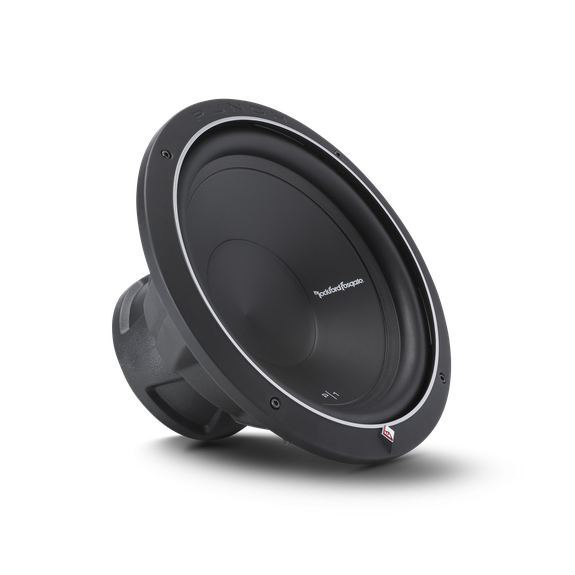

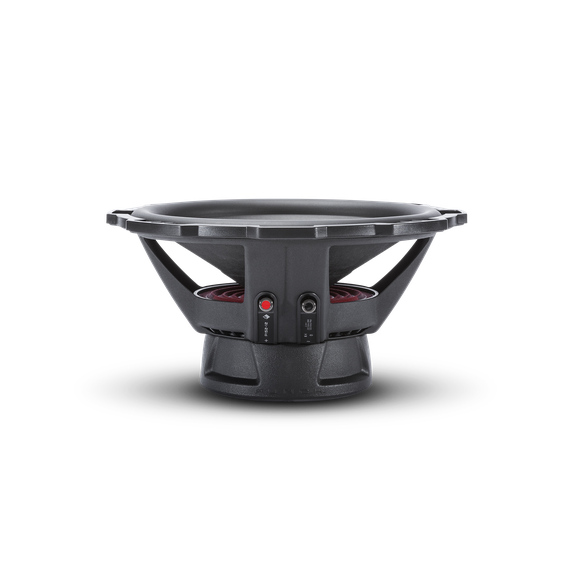

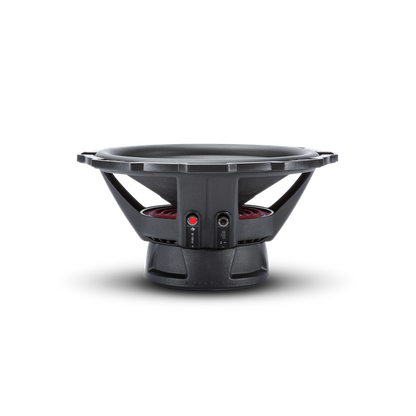

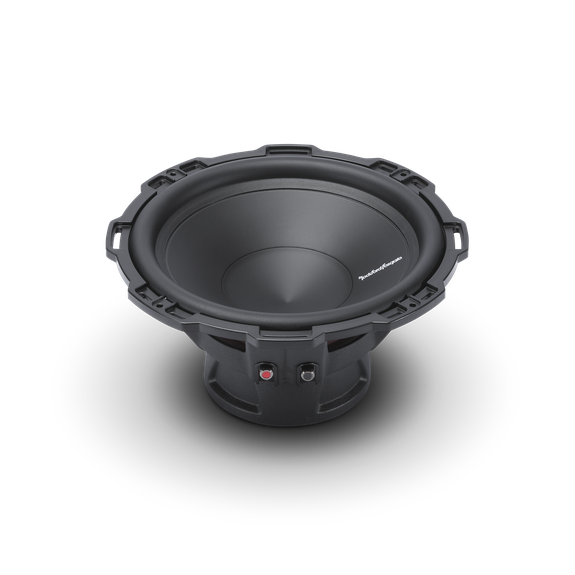

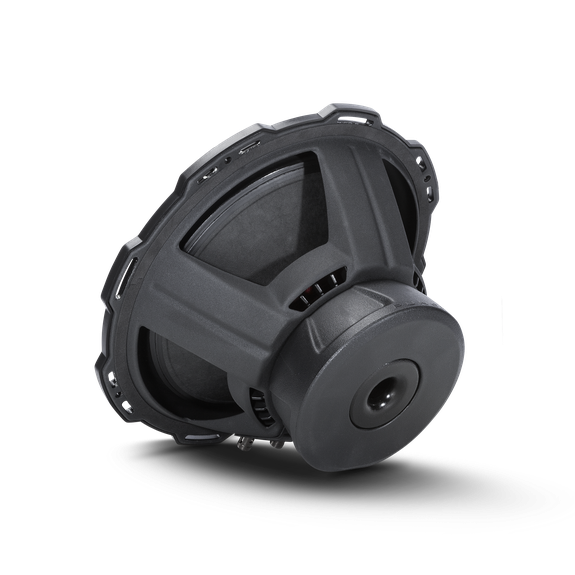

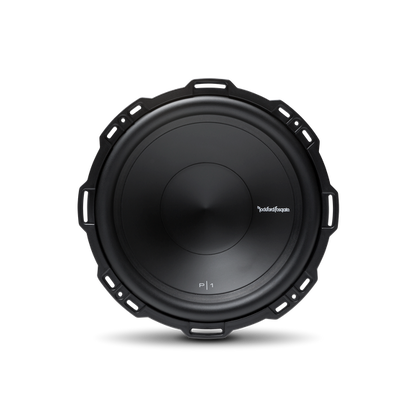

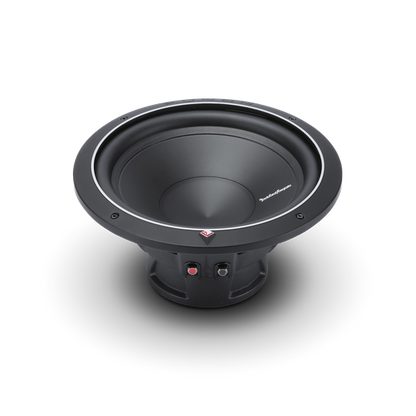

Rockford Fosgate Punch P1S2-12
Rockford Fosgate Punch P1S2-12
SKU:P1S2-12
Couldn't load pickup availability
Punch 12" P1 2-Ohm SVC Subwoofer

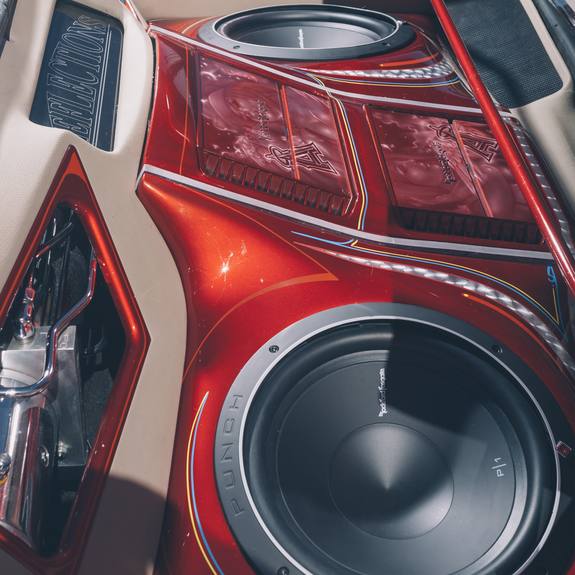

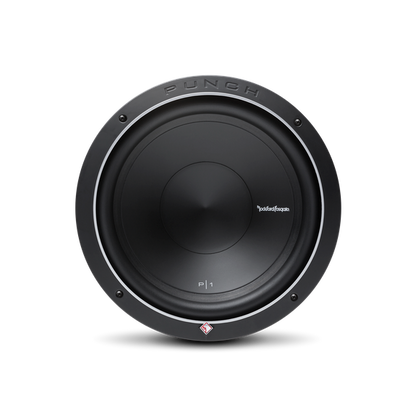

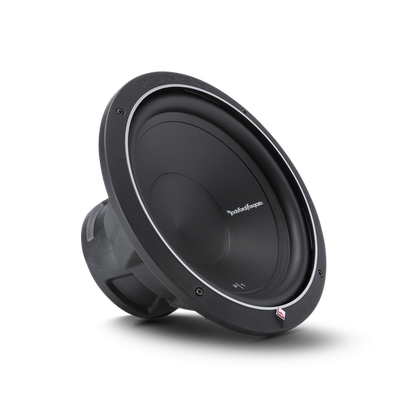

Rockford Fosgate P1 12” is the first in a family of famous “Punch” subwoofers. The P1S2-12 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring. Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
Specification
| Specification | Value |
|---|---|
| Magnet Weight | 45 oz (1.28 kg) |
| Voice Coil Type | Single Voice Coil (SVC) |
| Size | 12" |
| Subwoofer Type | Standard |
| Sd | 548 cm² |
| Re | 1.8 Ω |
| Voice Coil Diameter | 2.0" (51.6 mm) |
| CEA-2031 Compliant | Yes |
| Power Handling (RMS) | 250 W |
| Power Handling (Max) | 500 W |
| Nominal Impedance | 2 Ω |
| Qts | 0.55 |
| Speaker Connector | Dual 10 AWG compression |
| Qms | 3.39 |
| Le | 1.17 mH |
| Qes | 0.84 |
| Fs | 25 Hz |
| Vas | 88.3 L |
| Mounting Depth | 6.0" (152.4 mm) |
| SPL @ 2.8 V/1 m | 89 dB |
| Cutout Diameter | 11.22" (285 mm) |
| Xmax | 9.0 mm |
| SPL @ 1 W/1 m | 86 dB |
| Shipping Weight | 12.5 lb (5.66 kg) |
| Woofer Displacement | 0.081 ft³ (2.3 L) |
| Sealed Box Volume (Vb) | 1.02 ft³ (28.8 L) |
| Vented Box Volume (Vb) | 1.79 ft³ (50.6 L) |
