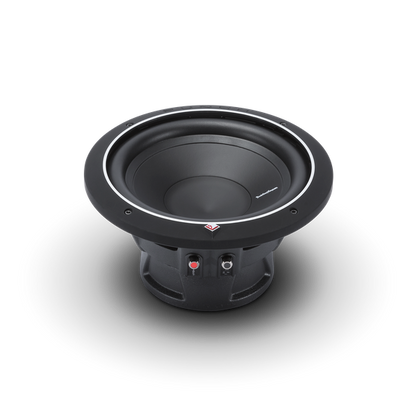

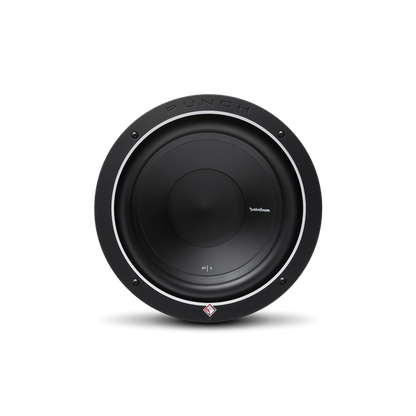

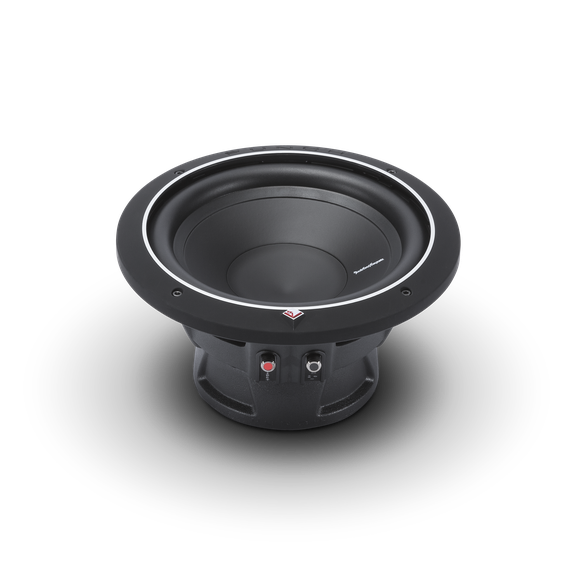

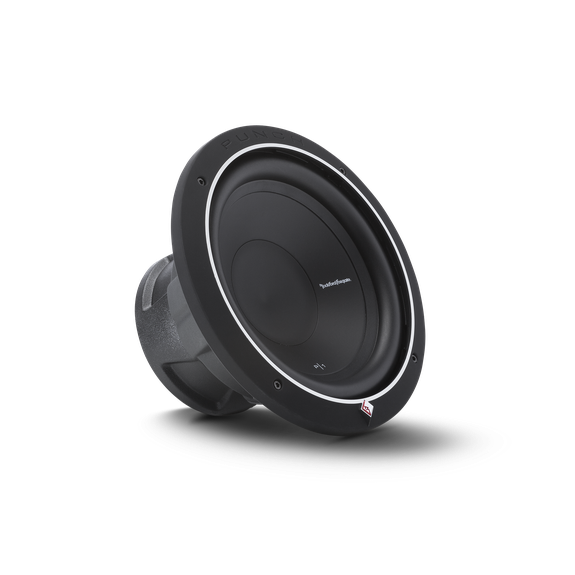

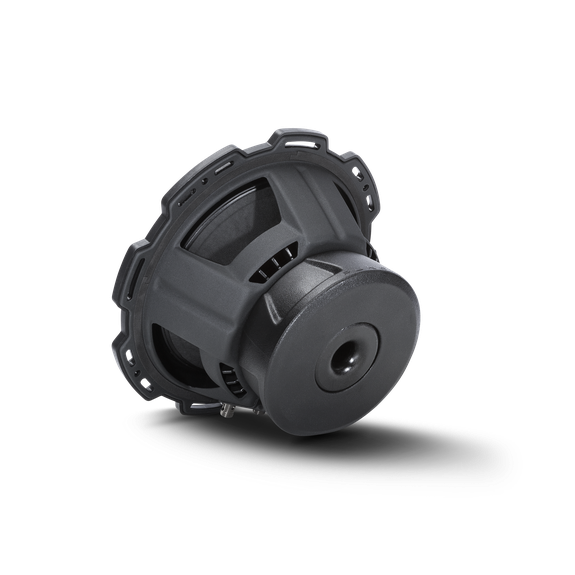

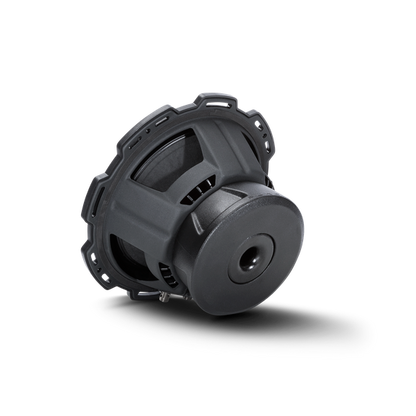

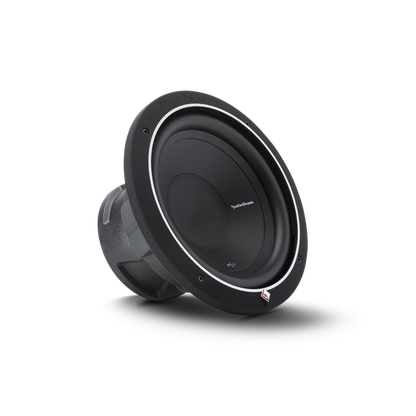

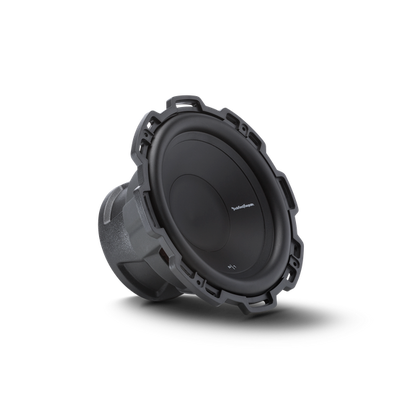

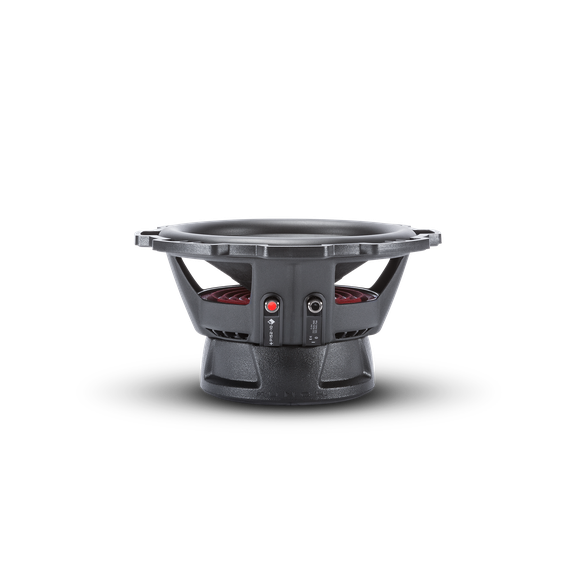

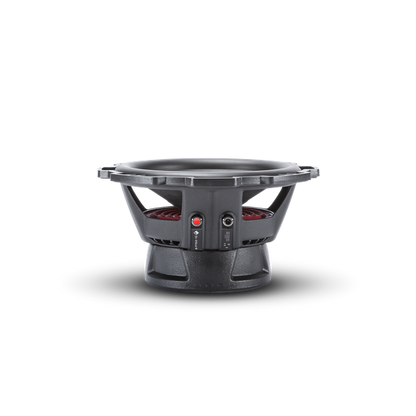

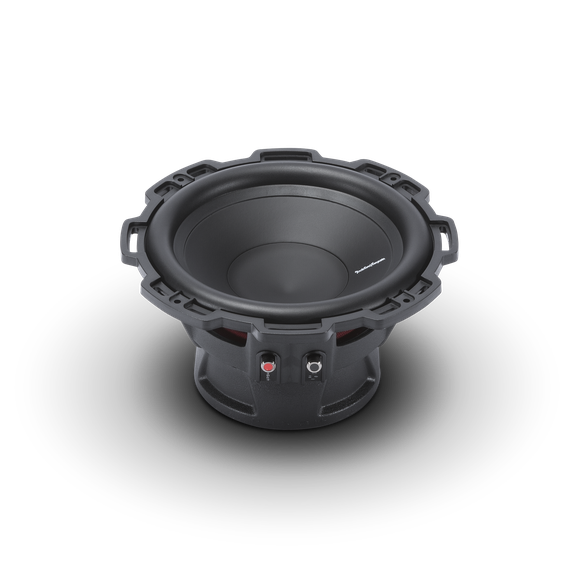

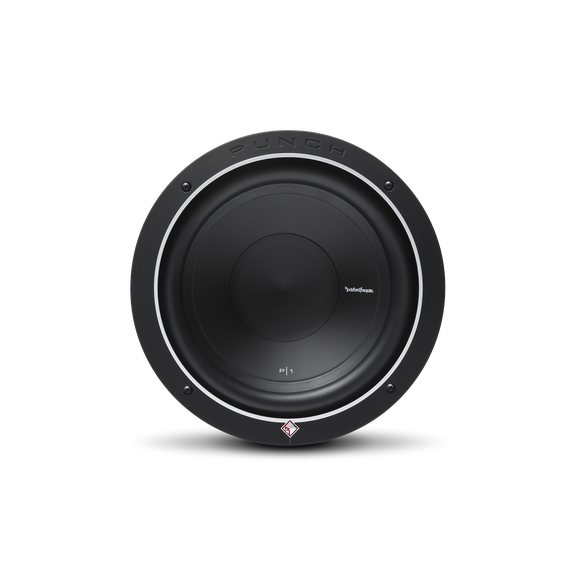

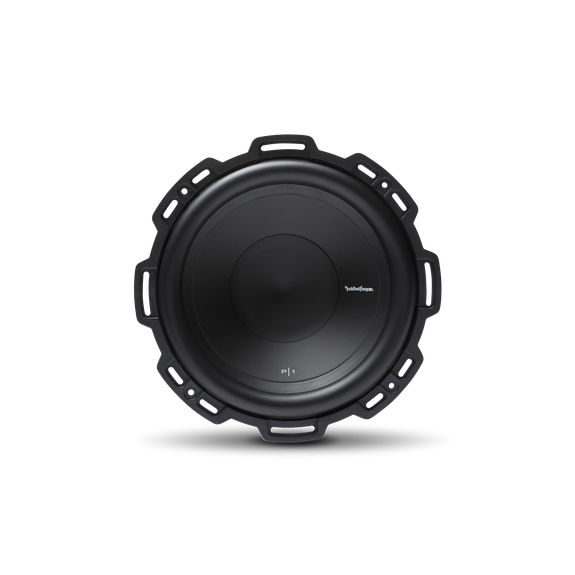

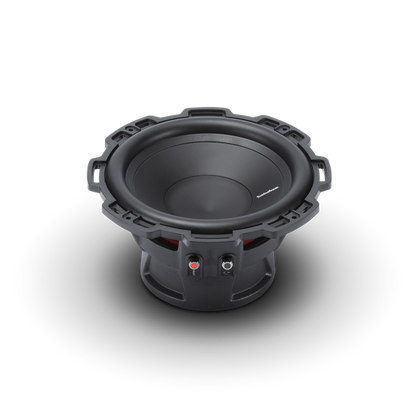

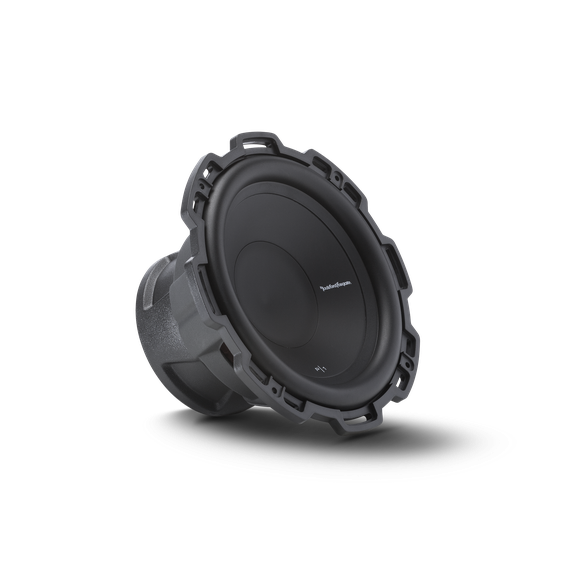

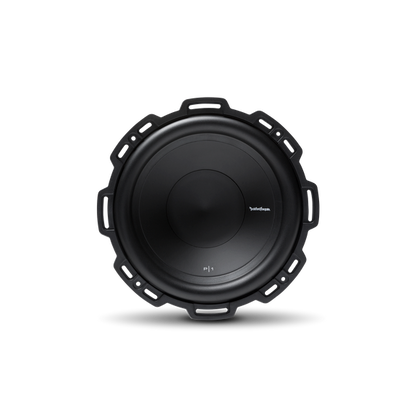

Rockford Fosgate Punch P1S2-10
Rockford Fosgate Punch P1S2-10
SKU:P1S2-10
Couldn't load pickup availability
Punch 10" P1 2-Ohm SVC Subwoofer
Rockford Fosgate P1 10” is the first in a family of famous “Punch” subwoofers. The P1S2-10 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
Specification
| Specification | Value |
|---|---|
| Power Handling (RMS) | 250 W |
| Power Handling (Max) | 500 W |
| Voice Coil Type | Single Voice Coil (SVC) |
| Nominal Impedance | 2 Ω |
| Subwoofer Type | Standard |
| CEA-2031 Compliant | Yes |
| Magnet Weight | 45 oz (1.28 kg) |
| Size | 10" |
| Xmax | 9.0 mm |
| Qts | 0.52 |
| Qms | 2.70 |
| Fs | 30 Hz |
| Re | 1.60 Ω |
| Mounting Depth | 5.33" (135.4 mm) |
| Le | 1.16 mH |
| Vas | 35.4 L |
| Speaker Connector | Dual 10 AWG compression |
| Voice Coil Diameter | 2.0" (51.6 mm) |
| SPL @ 1 W/1 m | 85 dB |
| SPL @ 2.8 V/1 m | 88 dB |
| Sd | 370 cm² |
| Cutout Diameter | 9.14" (232 mm) |
| Qes | 0.75 |
| Shipping Weight | 11.1 lb (5.03 kg) |
| Woofer Displacement | 0.056 ft³ (1.6 L) |
| Sealed Box Volume (Vb) | 0.59 ft³ (16.7 L) |
| Vented Box Volume (Vb) | 1.4 ft³ (39.6 L) |
