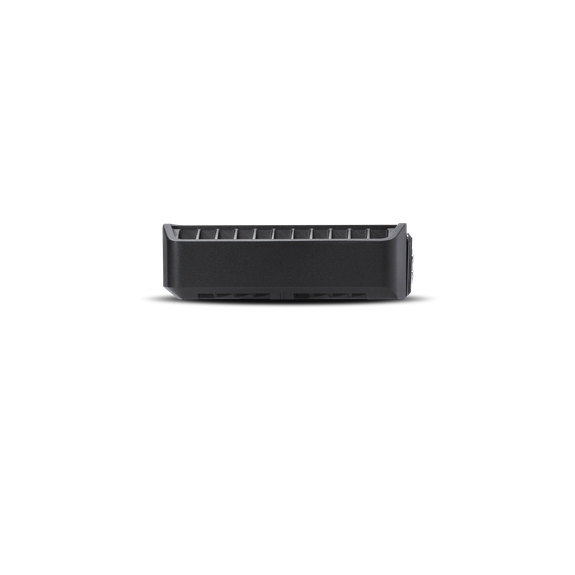

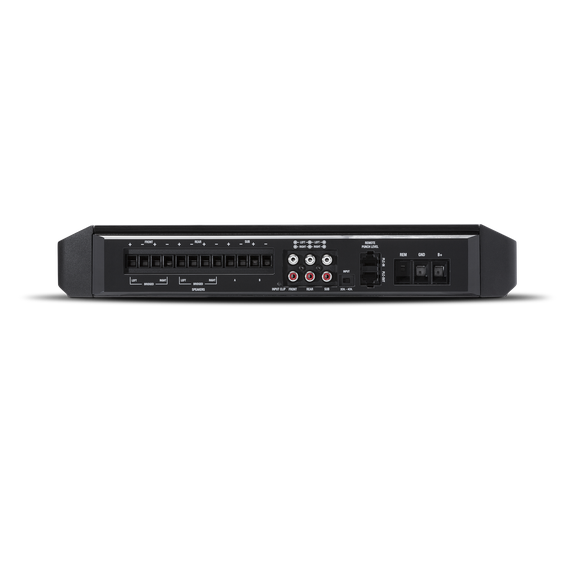

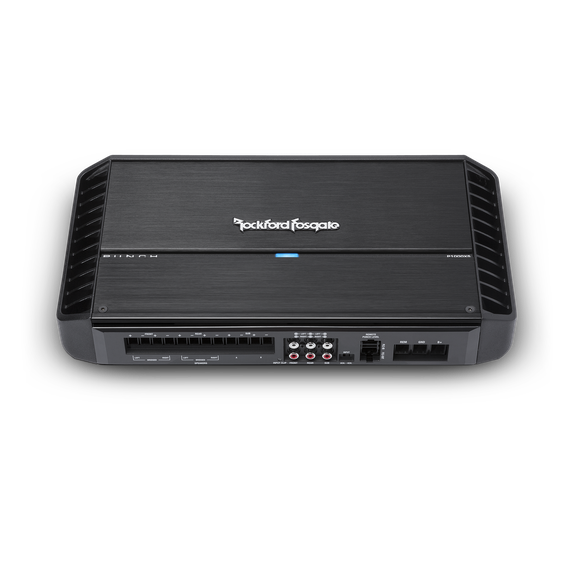

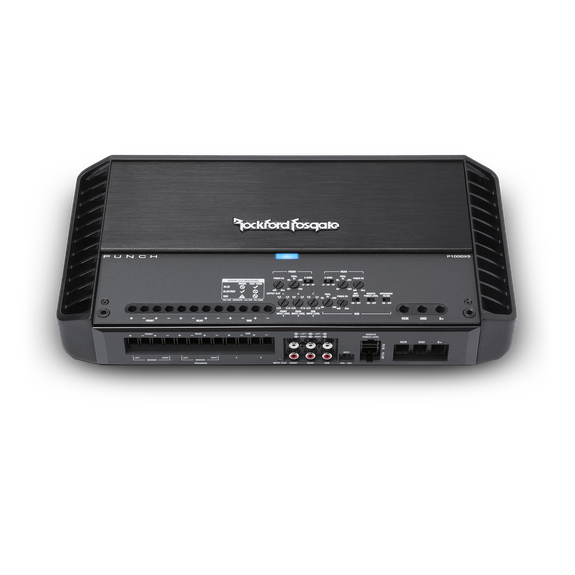

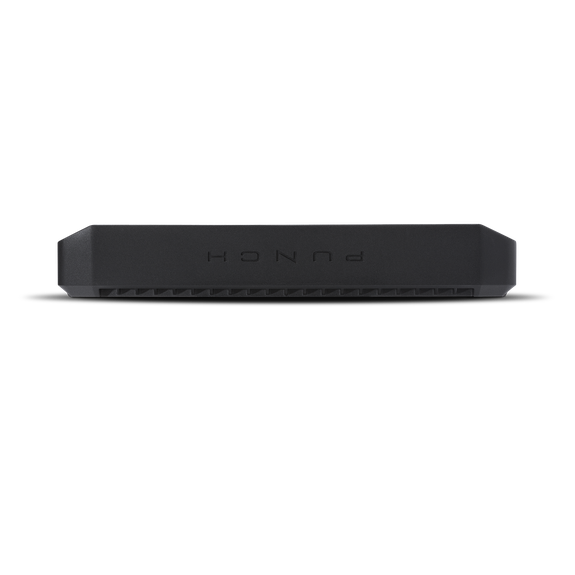

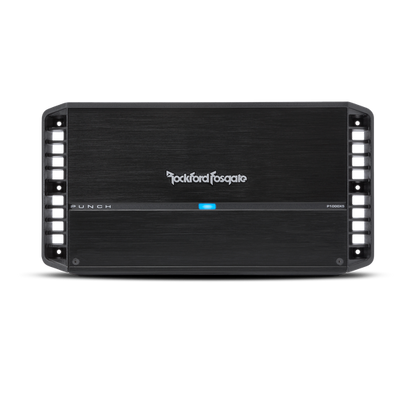

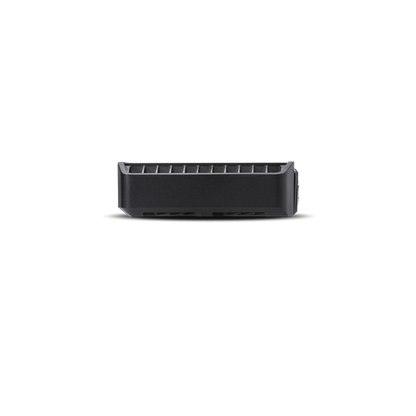

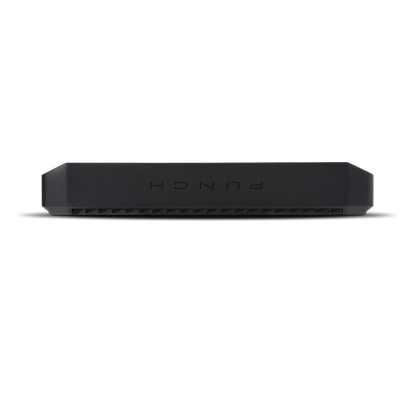

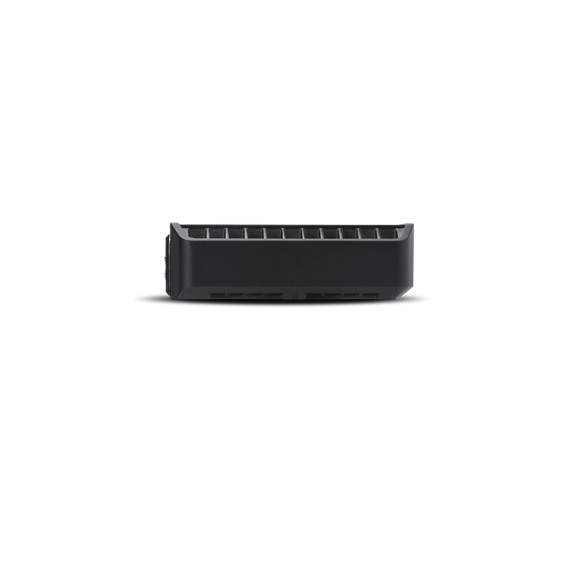

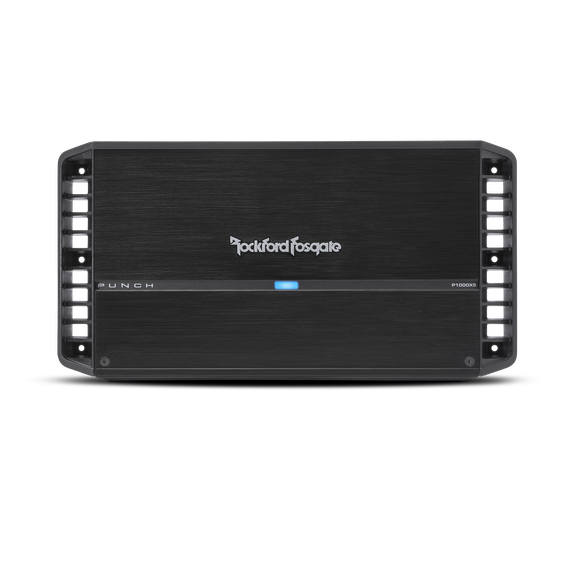

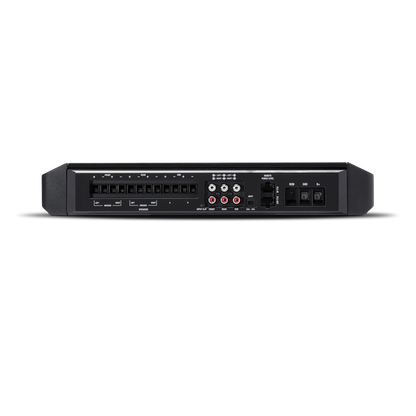

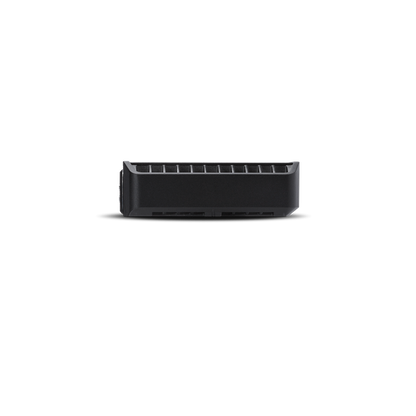

Rockford Fosgate P1000X5
Rockford Fosgate P1000X5
SKU:P1000X5
Regular price
$689.99 USD
Regular price
Sale price
$689.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Punch 1,000 Watt Class-bd 5-Channel Amplifier
The Rockford Fosgate P1000X5 is a versatile 5-channel car amplifier designed to power your complete audio system with clarity and precision. This amplifier provides excellent performance for both full-range speakers and subwoofers, making it ideal for audiophiles seeking a clean, powerful sound without distortion. With Rockford Fosgate’s advanced circuitry and rugged design, the P1000X5 delivers reliable performance for all vehicle audio setups.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 5 |
| Total Power (Sum of Rated Power) | 1000 Watts RMS |
| Rated Power (RMS Continuous Power) | 75 W × 4 + 150 W × 1 @ 4 Ω125 W × 4 + 300 W × 1 @ 2 ΩN/A × 4 + 500 W × 1 @ 1 Ω250 W × 2 + N/A × 1 @ 4 Ω Bridged |
| Dynamic Power (PVC/PowerCube®) | 115 W × 4 + 299 W × 1 @ 4 Ω 0° Res190 W × 4 + 540 W × 1 @ 2 Ω 0° ResN/A × 4 + 863 W × 1 @ 1 Ω 0° Res380 W × 2 + N/A × 1 @ 4 Ω Bridged 0° Res |
| Bridgeable | Yes — Front/Rear Channels |
| Frequency Response | Front/Rear: 20 Hz – 20 kHz ±3 dBSub: 20 Hz – 500 Hz ±3 dB |
| Input Sensitivity | 150 mV – 12 V |
| Circuit Topology Class | Class A/B + Class BD (Sub) |
| Efficiency (Average) | Front/Rear: 66% @ 4-OhmSub Channel: 80% @ 4-Ohm |
| Total Harmonic Distortion (THD+Noise) | <1.0% |
| Signal Input | Input: Hi/Low LevelInput: 2/4 ChannelHi/Low Level: 3 RCA pairsSub: Front/Sub input switch |
| Signal Output | — |
| Tone Controls — Sub | 0 dB to +18 dB @ 45 Hz |
| Crossover Controls — Front | High-Pass: 50 Hz – 250 Hz @ 12 dB/octave |
| Crossover Controls — Rear | High-Pass: 50 Hz – 250 Hz @ 12 dB/octave |
| Crossover Controls — Sub | Low-Pass: 50 Hz – 250 HzInfrasonic Filter: 28 Hz @ 12 dB/octave |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Visual Indicators | Power / Protect / Thermal LEDInput Clip LED³Output Clip LED¹²³ |
| LED Color Legend | Blue: <0.5% THDViolet: 1% THDRed: 10%+ THD |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 12 AWG |
| Speaker Output Connector | Block |
| Cooling | Convection |
| Heatsink | Yes |
| Operating Voltage | 9–16 VDC |
| Recommended Fuse | 150 A (not included) |
| Average Current Draw (13.8 V Music) | 75 A |
| Maximum Current Draw (13.8 V Sinewave) | 150 A |
| Suggested Alternator | 100 A |
| Included in the Box | Not specified |
| Dimensions (H × W × D) | 2.38 × 7.76 × 15.03 in.6.05 × 19.71 × 38.18 cm |
| Shipping Weight | 15.3 lbs (6.93 kg) |
