Out of stock

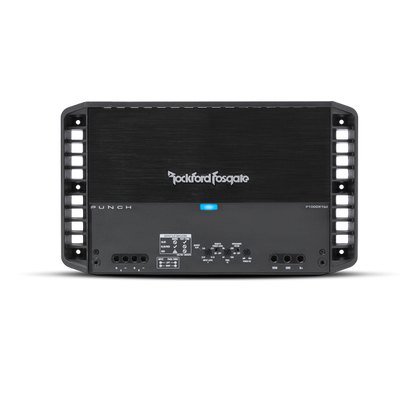

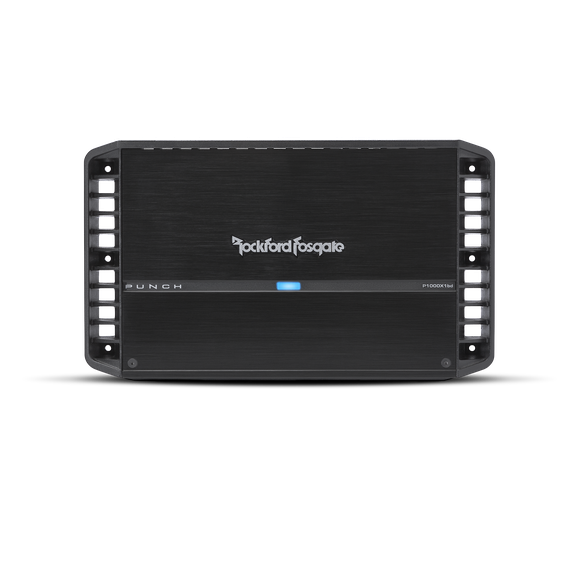

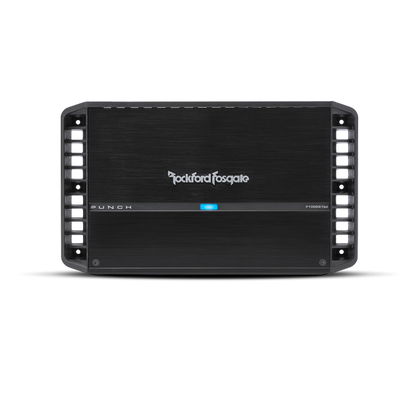

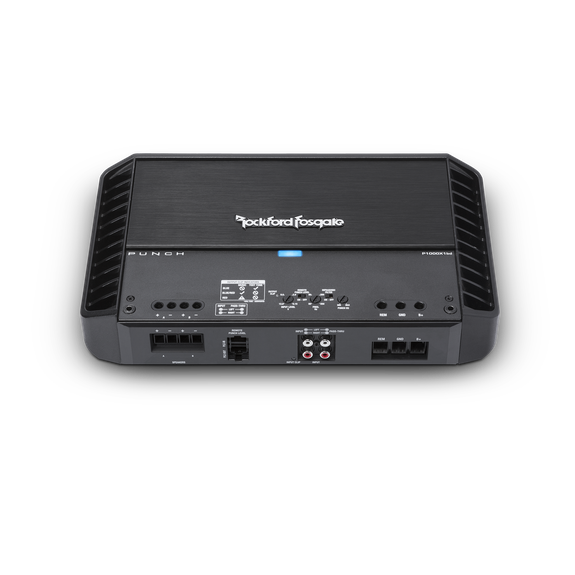

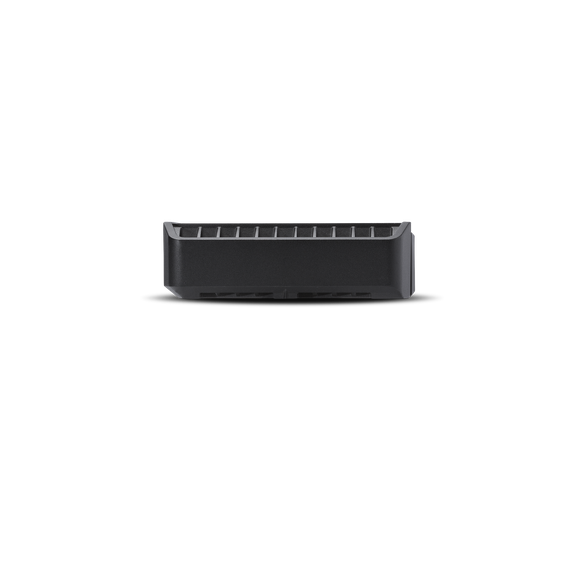

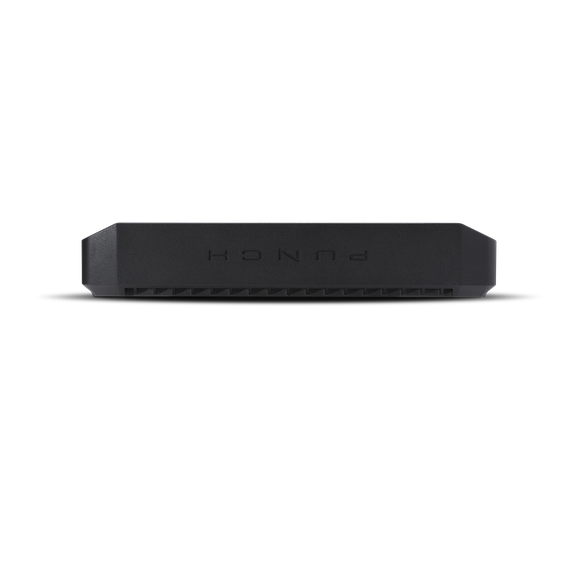

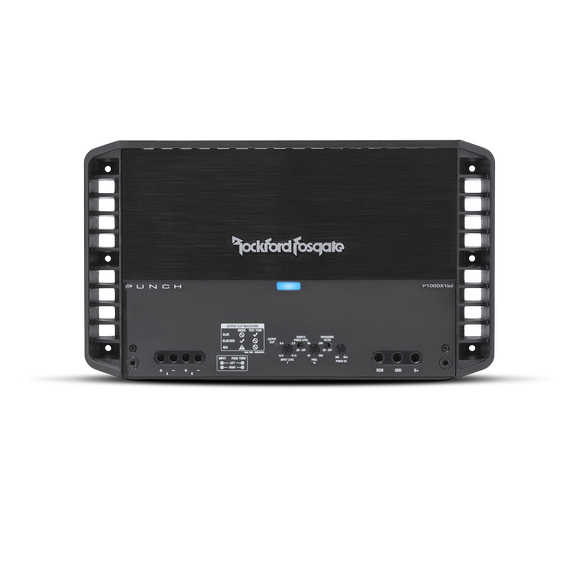

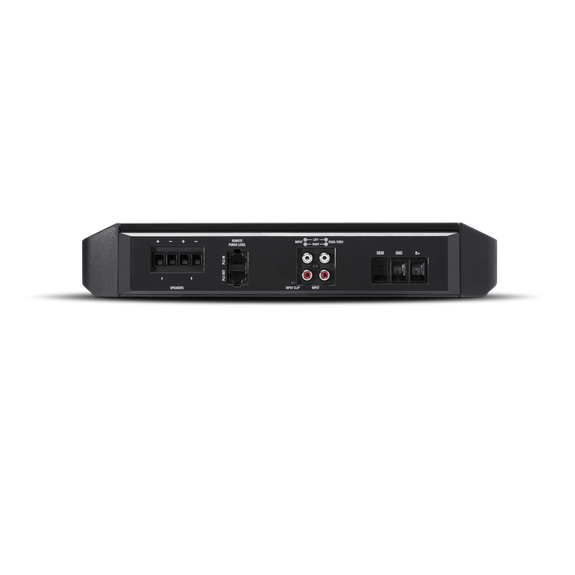

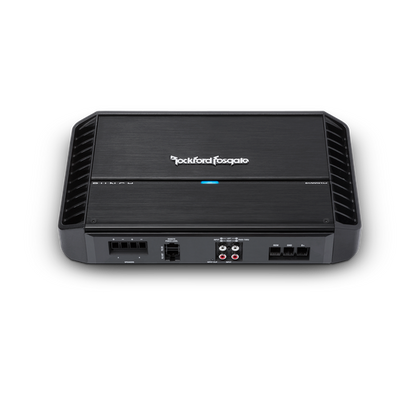

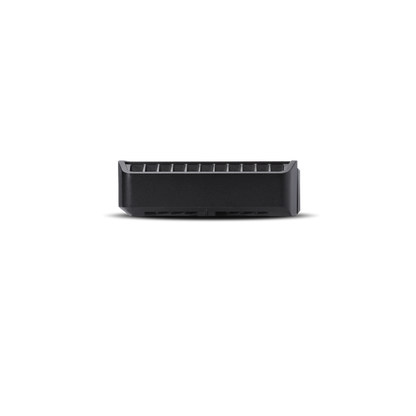

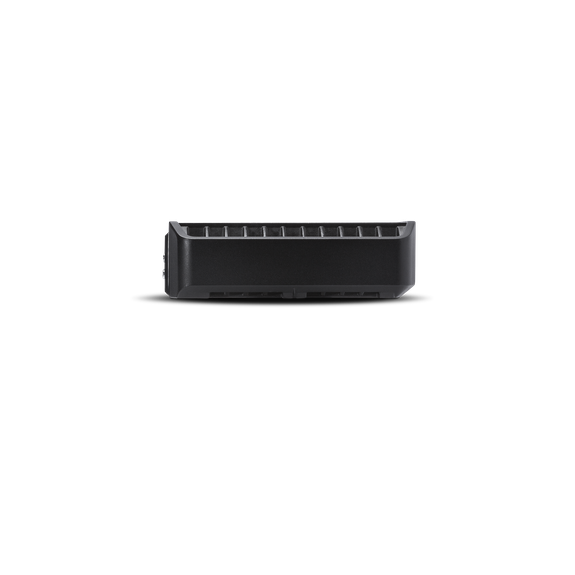

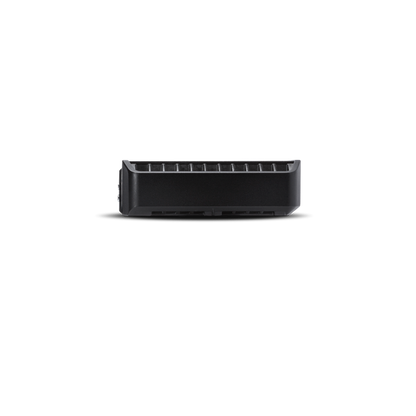

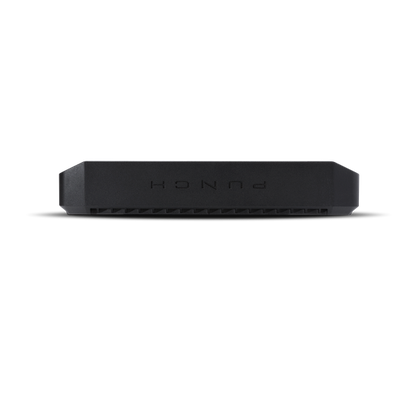

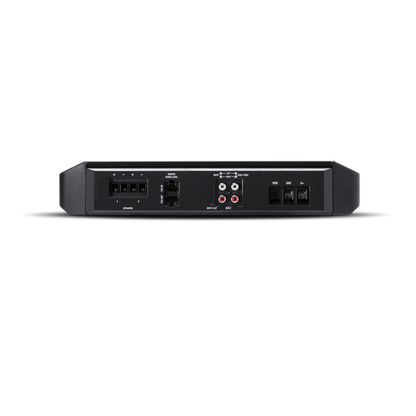

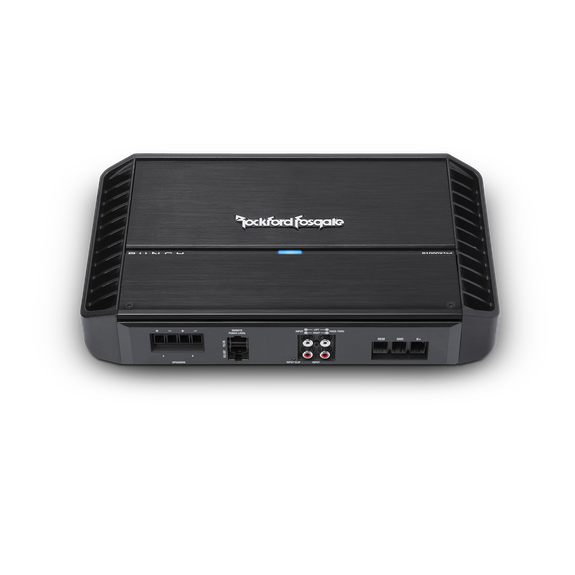

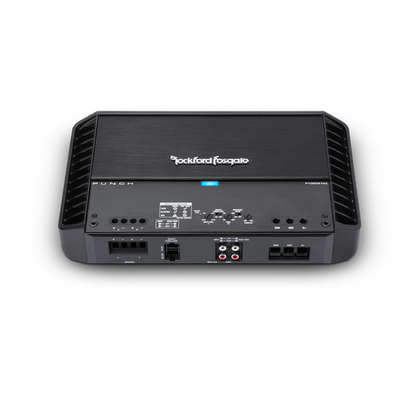

Rockford Fosgate P1000X1bd

Name: Rockford Fosgate P1000X1bd
Brand: Rockford Fosgate
SKU: P1000X1bd
Price: 549.99 USD
Availability: OutOfStock

SKU:P1000X1bd

$549.99 USD

Sale Sold out

Shipping calculated at checkout.

Ask A Product Expert

Estimated delivery: 2–5 business days

Free shipping & returns on all orders

Punch 1,000 Watt Class-bd Mono Amplifier

The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers.

Specification

Specification	Details
CTA-2006 Compliant	Yes
Number of Channels	1
Total Power	1000 Watts
Rated Power	300 W × 1 @ 4 Ω500 W × 1 @ 2 Ω1000 W × 1 @ 1 Ω
Dynamic Power	491 W × 1 @ 4 Ω874 W × 1 @ 2 Ω1,430 W × 1 @ 1 Ω
Bridgeable	No
Frequency Response	20 Hz–250 Hz ±1.0 dB
Input Sensitivity	150 mV–12 V
Circuit Topology Class	Class BD
Efficiency (Average)	86% @ 4 Ω
Total Harmonic Distortion (THD+Noise)	<1.0% @ 4 Ω<1.0% @ 2 Ω<1.0% @ 1 Ω
Signal Input	Hi/Low Level: 1 RCA Pair
Signal Output	Hi/Low Level: 1 RCA Pair
Tone Controls	Punch EQ2 Bass: 0 dB to +18 dB @ 45 Hz
Crossover Controls	Low-Pass (LP): 50–250 Hz @ 12 dB/octave ButterworthInfrasonic Filter (IF): 28 Hz @ 12 dB/octave ButterworthAll-Pass: No
Remote Controls	Optional Punch Level Control (PLC2) Ready
Visual Indicators	Power/Protect/Thermal LEDInput Clip LEDOutput Clip LEDBlue: <0.5% THD · Violet: 1% THD · Red: 10%+ THD
Power Wire Gauge	4 AWG
Power Input Connector	Captive C-Clamp
Speaker Wire Gauge	8–18 AWG
Speaker Output Connector	Captive C-Clamp
Cooling	Convection
Heatsink	—
Operating Voltage	9–16 VDC
Recommended Fuse	140 A (Not Included)
Average Current Draw (13.8 V Music)	65 A
Max. Current Draw (13.8 V Sinewave)	130 A
Suggested Alternator	100 A
Included In The Box	—
Dimensions (H × W × D)	2.38 × 7.76 × 13.28 in6.05 × 19.71 × 33.73 cm
Shipping Weight	12.9 lb (5.85 kg)
