Rockford Fosgate MX-CAM
Rockford Fosgate MX-CAM
SKU:MX-CAM
Couldn't load pickup availability
Motorsports Camera Kit with PMX Compatibility
Purpose built exclusively for the Polaris® and Can-Am® X3 models.
Plug and Power Design: Utilizing a common main harness and a vehicle specific T-Harness to connect easily into select Polaris and Can-Am models.
Hi-Res Color Camera: High resolution color camera provides crystal clear picture for backing up or rock crawling.
Easy Installation: Vehicle specific mounting brackets allow direct fit for Ranger, Can-Am, and 2014+ RZR.
Compatible w/ PMX Source Units: Plugs directly into PMX-3 and PMX-8 with included trigger wire adapter.
Requires Wiring Kit: Camera requires matching installation wiring kit.
Compatibility Chart: Please review below tab for fitment before purchasing.
Specification
| CATEGORY | SPECIFICATION |
|---|---|
| Image Sensor | 1/4" CMOS |
| Resolution | 680 × 488 |
| Lens | 120° (H), 89° (V) |
| Cutout Diameter | 19 mm (0.75") |
| Video Output | 1.0 Vpp Composite, 75-Ohms |
| S/N Ratio | > 42 dB |
| Minimum Illumination | 0.1 Lux |
| Mirror Image | OFF = cut mirror option wireON = connect mirror option wire |
| Operating Temp | -30 to +70 °C |
| DC Power | 12 V, 70 mA |
| Operating Voltage | DC 12 V (8 V–15 V) |

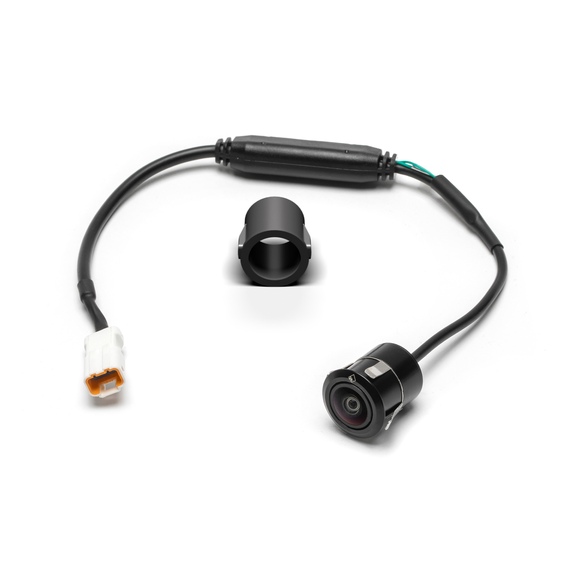

| In The Box | (1) Eyeball camera with 11" pigtail |
| Shipping Weight | 0.3 lbs. (0.14 kg) |
