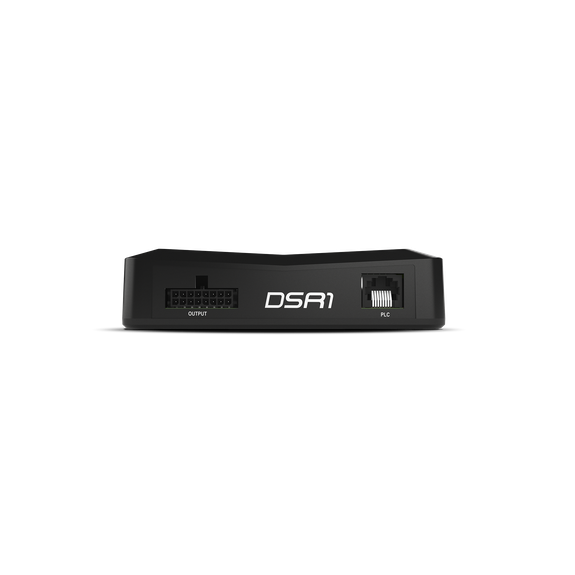

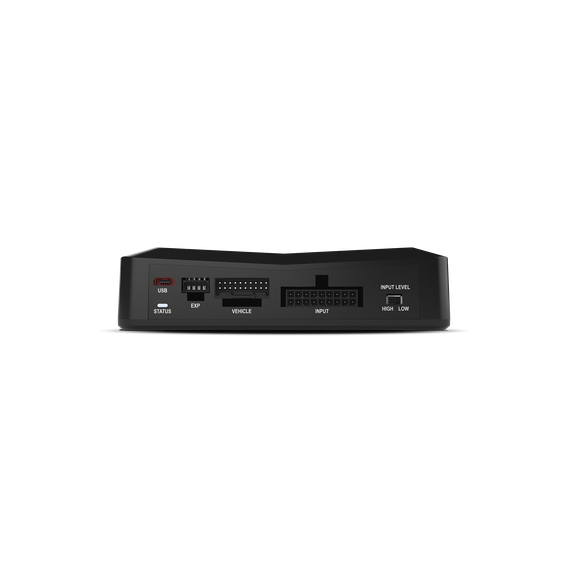

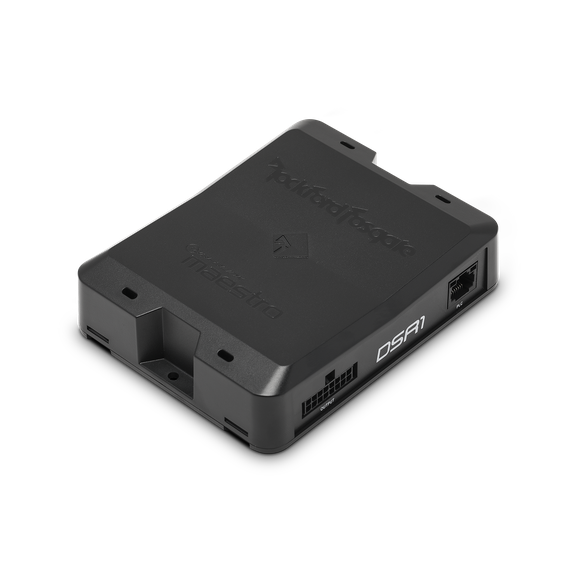

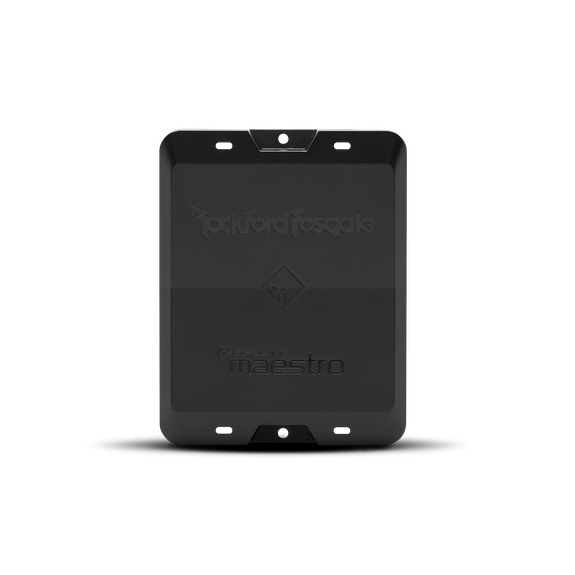

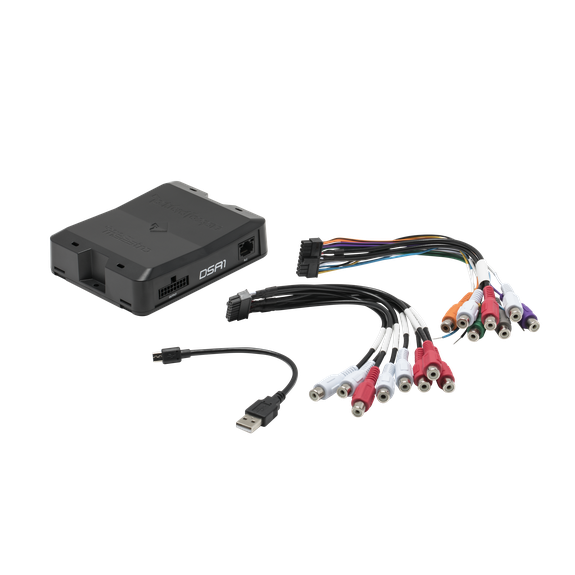

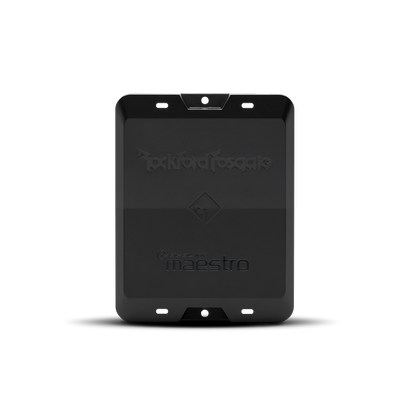

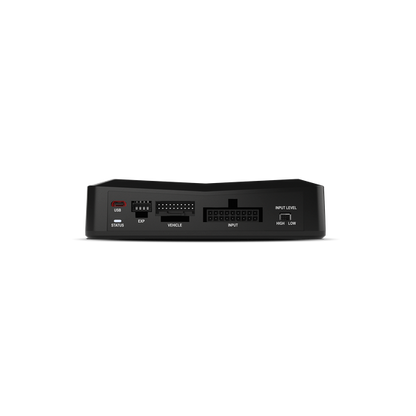

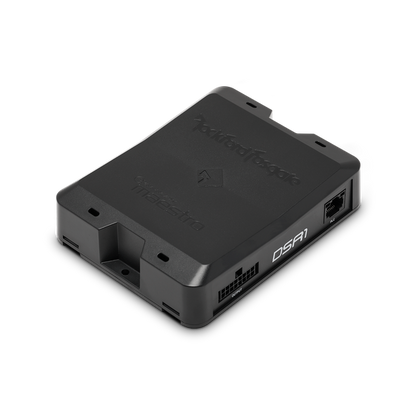

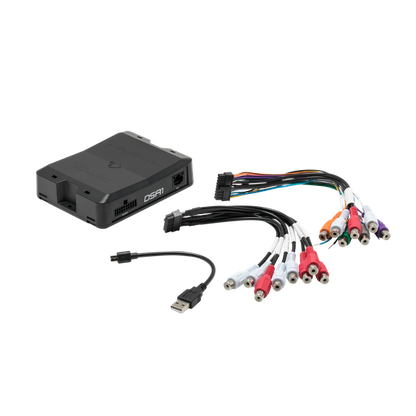

Rockford Fosgate DSR-1
Rockford Fosgate DSR-1
SKU:DSR1
Regular price
$419.99 USD
Regular price
Sale price
$419.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
8-Channel Interactive Signal Processor w/ Integrated iDatalink Maestro Module

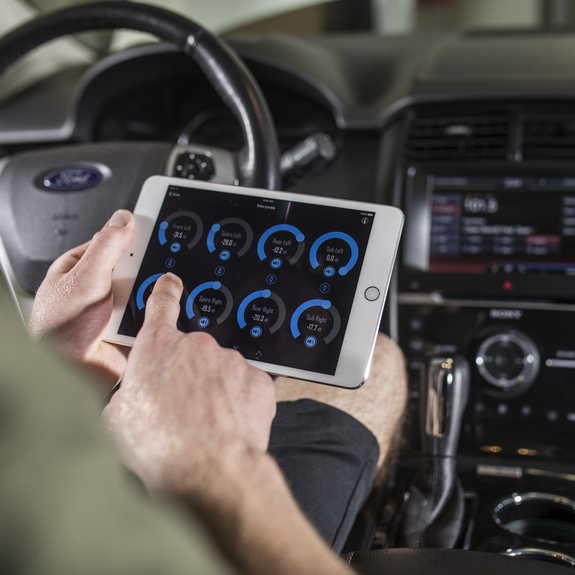

Co-developed with iDatalink Maestro, the DSR1 combines a full-featured 3Sixty digital signal processor with a flashable Maestro integration module. The DSR1 can be used out-of-the-box with high or low level input, or with a quick flash download to add vehicle specific firmware to enable integration without the loss of factory equipped controls and features. Once connected, complete control of the sound profile can be adjusted using the proprietary Rockford Fosgate PerfectTune™ software.
Specification
| Specification | Details |
|---|---|
| Processor Type | Digital Processor |
| Signal Input | 4 Balanced Differential RCA Inputs4 High-Level Inputs w/ Signal Sense2 AUX RCA InputsSPDIF Coaxial Input |
| Signal Output | 8 RCA Outputs |
| Input Impedance | 20k Ohms |
| Digital Signal Processing (DSP) | Speed: 147 MIPSPrecision: 32-BitAccumulators: 72-Bit |
| Gain | — |
| Output Impedance | 200 Ohms |
| Frequency Response | 20Hz – 20kHz ±0.5dB |
| Operating Voltage | 9 – 16 VDC |
| Mounting | Behind Dash |
| Input Voltage – Low Level (RCA) | Up to 4V |
| Input Voltage – High Level | Up to 12.5V |
| High-Level Turn-On | 4V – 16V |
| Input Voltage – AUX | Up to 2V |
| Output Voltage | Up to 4V RMS |
| THD+N | <1.0% |
| Signal-to-Noise – RCA | >100 dBA (A-weighted) |
| Signal-to-Noise – AUX | >100 dBA (A-weighted) |
| Crossover Type | High-PassLow-PassBand-PassAll-PassFixed Linkwitz-Riley |
| Smartphone App | Apple App Store / Google Play |
| Smartphone Compatibility – Apple | iOS 10.0 or lateriPhone, iPad, iPod touch |
| Smartphone Compatibility – Android | Oreo 8.0 or laterOptimized for 5-inch screen or larger |
| ADC – Precision | 24-Bit |
| ADC – Dynamic Range | 105 dB |
| ADC – THD+N | −98 dB |
| DAC – Precision | 24-Bit |
| DAC – Dynamic Range | 108 dB |
| DAC – THD+N | −98 dB |
| Crossover Frequency | Variable: 20 Hz – 10 kHz |
| Crossover Slope | Selectable: 6 / 12 / 18 / 24 / 30 / 36 / 48 dB/Octave |
| EQ Frequency Centers | Channels: Front / Spare / Rear / Sub31 frequency bands per channel |
| EQ Frequency Controls | Selectable Q: 0.01 – 10.0 |
| Shipping Weight | 0.5 lbs. (0.22 kg) |
| Dimensions (H × W × D) | 1.26" × 4.04" × 5.12"(32 × 102.5 × 130 mm) |
